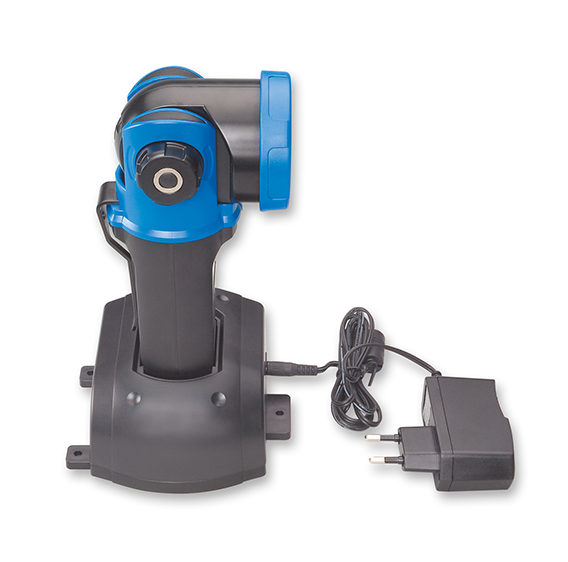

HL 20 Set 12-24V / 230V

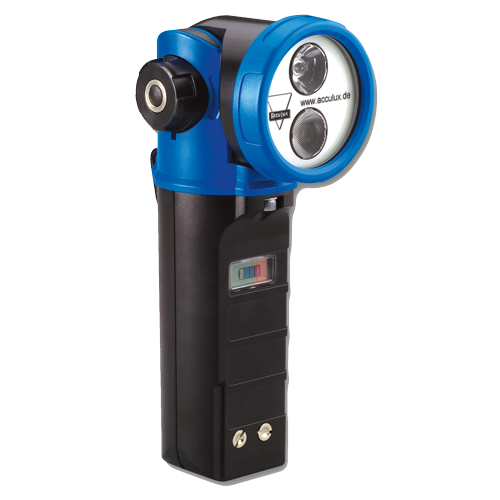

The microprocessor-controlled, rechargeable flexible head safety lamp, model HL 20, is made of shock-proof plastic. The lamp is equipped with two switchable high-performance LEDs: a power LED with focussed beam for far range and a 1 watt power LED with a wide emission for close range. The environment-friendly lithium ion battery without memory effect is secured against deep discharge and can be permanently charged through the intelligent circuit layout. This can be replaced by the user. The light can be used flexibly due to the 4-stage adjustable lamp head. The lamp can also be attached to protective clothing through a clamp. The HL 20 can be operated in a permanent and blinking function and used as a warning light.  The charging units for 100-230V AC, 12V DC and 24V DC can be delivered from 1 to 5x.
  • replaceable lithium ion battery
  • LCD capacity display blinks while charging
  • LCD capacity display backlit
  • 4-stage adjustable lamp head
  • Charging units 1 to 5x available
  • no change of the lamp required
  • emergency light function can be turned off
  • ow weight, only approx. 525 g
Article no. 459681 (230 V) / 459581 (12-24V)
Case material Plastic, shock-resistant
Lamp high beam Power LED (approx. 180 lumen)
Operating time high beam approx. 5 h
Range approx. 200 m*
Protection class of the lamp IP 65
Light close range 1 Watt LED (approx. 90 lumen)
Operating time close range approx. 10 h
Rechargeable Lithium ion rechargeable battery
Charging voltage 100-230V AC 50/60 Hz, 12V DC, 24 V DC
Weight of the lamp approx. 525 g
Dimensions in mm 225 x 70 x 70

*Luminous flux (lumen) or maximum range (meter) measured when turning on with a set of new batteries. These are average values that may deviate by +/- 10% due to component tolerances.
